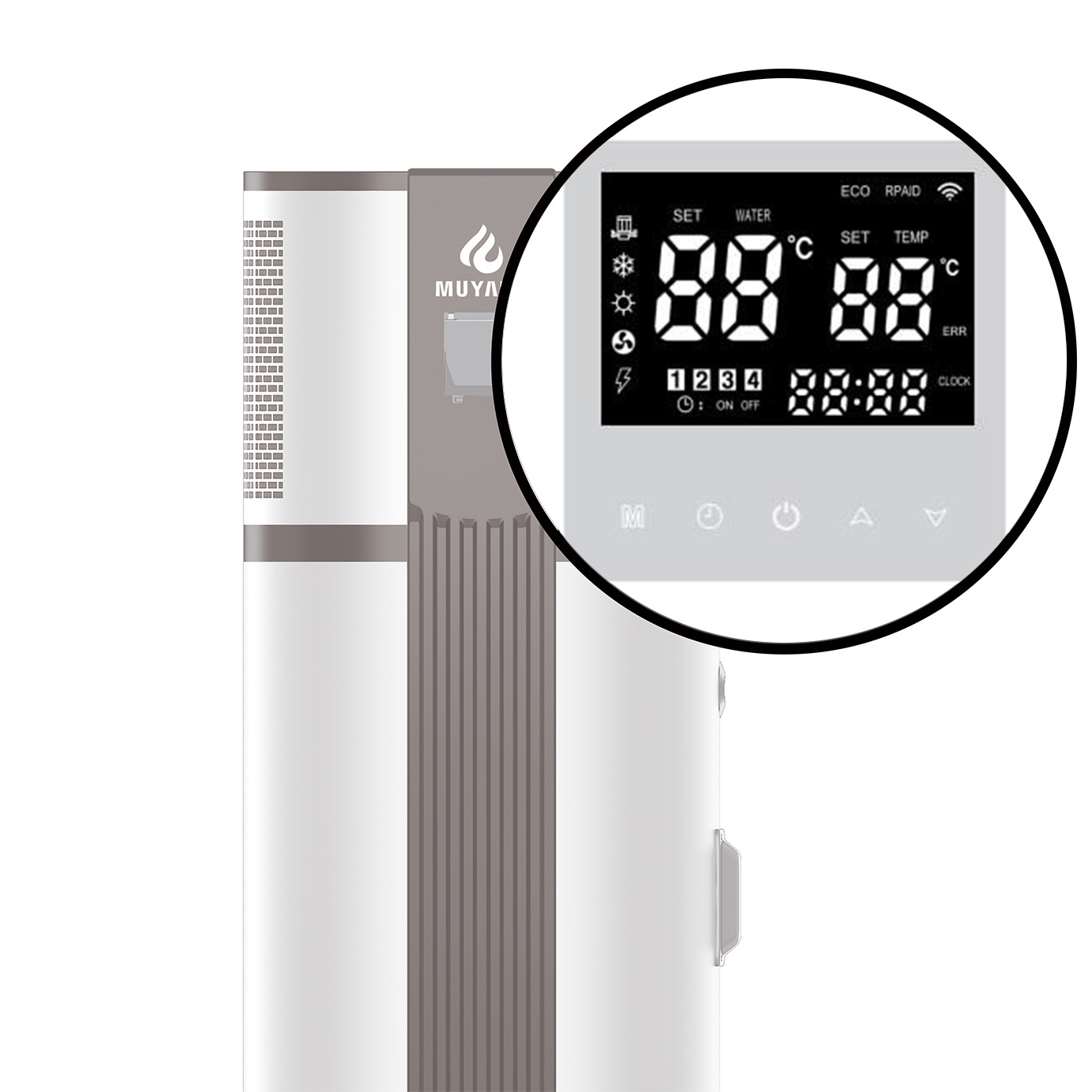

User-friendly Controller
The water heater comes with an inbuilt touch LCD display. It is very user friendly and boast a range of operation modes and settings to ensure the lowest energy consumption.
PRODUCT CATEGORY
All-In-One Water Heater Heat Pump
The Most Efficient In the World
Save Up to 75% In Energy
Capacity: 200L, 270L, 300L
Suitable for Use In Harsh Water Quality Conditions
Ultra Quiet At Only 48dB, Refrigerant R290
Category:
Keywords:
Heat Pump
Water Heater Heat Pump
- 产品描述
-
Capacity: 200L, 270L, 300L
Our extensive range of products can service single bedroom/bathroom residencens, right through to multi-level offices, hotels, motels, resorts, receational facilities, retail outlets. We can also tailor a solution for your specific commercial applications.
R290 is an almost perfect refrigerants: Negligible global warming potential (GWP), Zero ozone layer depletion potential (ODP), Degradation time is considered in months, Permanent green alternative in the long term, Less load for the same performance, Low energy consumption and higher efficiency.Features
·Energy saving,environment friendly, durable, space saving, smoothand quiet operation.
·The heat pump has good quality compressor, evaporator,condenserand other parts which benefit to improve heating efficiency.
·Strong pressure bearing capacity(more than 280000 times of highintensity pulse pressure test)
Specification Parameters
EE Model(Residential) MY-HWS-A1-200E MY-HWS-A1-270E MY-HWS-A1-300E MY-HWS-A1-320E Power supply 220-240V/50Hz/1Phase Water Tank Volume 200L 270L 300L 320L Optional Running Modes energy conservation /Rapid heating Electric Heating Element 2KW Heating Capacity energy conservation
(Heat pump only)1.95kW 3.92KW 3.92KW 3.92kW Rated Input Power 0.35kW 0.7KW 0.71KW 0.71kW COP 5.6 5.6 5.5 5.5 Recharge Rate Per Hour 37L/h 84L/h 84L/h 84L/h Heating Time for15'Cto
55°C(airtemperature 15°C)/ 3.25 hours 3.5 hours / Noise Level 49 dB (A) 49dB(A) 49dB(A) 49 dB (A) Heating Capacity Rapid heating
(Heat pump+
Electric heater)4.5kw 6.1kW 4.1kW 4.1kW Rated Input Power 2.46kw 2.6kW 0.6kW 0.6kW COP 5.43 6.83 6.83 6.83 Recharge Rate Per Hour 70L/h 130L/h 130L/h 130L/h Heating Time for15'Cto
55°C(airtemperature 15°C)/ 2.0hours 2.3hours / Max Current(under booster mode) 10.6A 14.1A Refrigerant R134A/R290 Compressor HIGHLY Fan Motor DC Inverter Fan Type Axial Expansion Valve EEV Defrost 4-way valve Inner Tank Design Enamel/2.5mm tank wall/3.0mm dome Inner Tank Design Concave Tank Insulation Polyurethane,density:30-34kg/m³. Tank Protection Enamel/2.5mm tank wall/3.0mm dome Heat Exchanger Microchannel Outer Casing colour coated sheet TPR valve AVG /850kPa Rated Outlet Water Temperature 60°C Max Outlet Water Temperature 75°C scope of work -10℃-43℃ Ingress Protection Grade IPX4 Electric Shock Proof I Unpacked Dimension φ580*1700mm φ640*1890mm φ640*2020mm φ640*2110mm Outline Dimension 650*650*1860mm 710*710*2050mm 710*710*2180mm 710*710*2270mm Net Weight 118kg 118kg 123.5kg 129kg Gross Weight 124kg 124kg 129.5kg 135kg Experimental conditions Heating capacity at air temperature of 20℃/15℃,water temperature from 15℃ to 55℃ Type / Zone1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 / Energy savings(%) / 78.5% 74.5% 76.7% 75.0% 73.4% 79.4% 75.7% 77.4% 75.8% 74.2% / 10-year / 27 26 32 34 34 27 26 32 35 34 / 8-yearSTC entitlement(2023) / 16 15 19 20 20 16 15 19 21 20 /
Enamel Water Tank
The enamel coating design makes the welding line of steel plate separated with water, so it has no risk of corrosion, scaling, leakage, etc. Thus, the water tank is of high pressure and fatigue resistance which passes 250,000 times pulse test.
With advanced flat plate solar collectors and enameled water tanks and air energy products all industry chain production line, is a large domestic vacuum tube solar energy production base.
Certifications we have received
Since the establishment of the company, Muyang people always strive for excellence in enterprises and products, and has won the honors of high-tech enterprises, Shandong famous brand, home appliances to the countryside in the bidding brand, energy-saving products to benefit the people's project in the bidding enterprise, the provincial level of the contract and trustworthy enterprises, and has successfully passed the certification of IS09001, ISO14001, IS018001, the National Compulsory 3C certification, the CQC Golden Sun certification, the National Product Leader certification, the National Healthy Living Certification, China Ten Ring Certification, China Energy Conservation Certification, China Environmental Protection Certification, all products have passed the national and provincial laboratory inspection. Product Leader Certification, National Habitat Certification, China Ten Ring Certification, China Energy Conservation Product Certification, China Environmental Protection Product Certification, etc. All products have passed the national and provincial laboratory inspection.
