Forced circulation type - Jinpin

Keywords:

Solar Water Heater

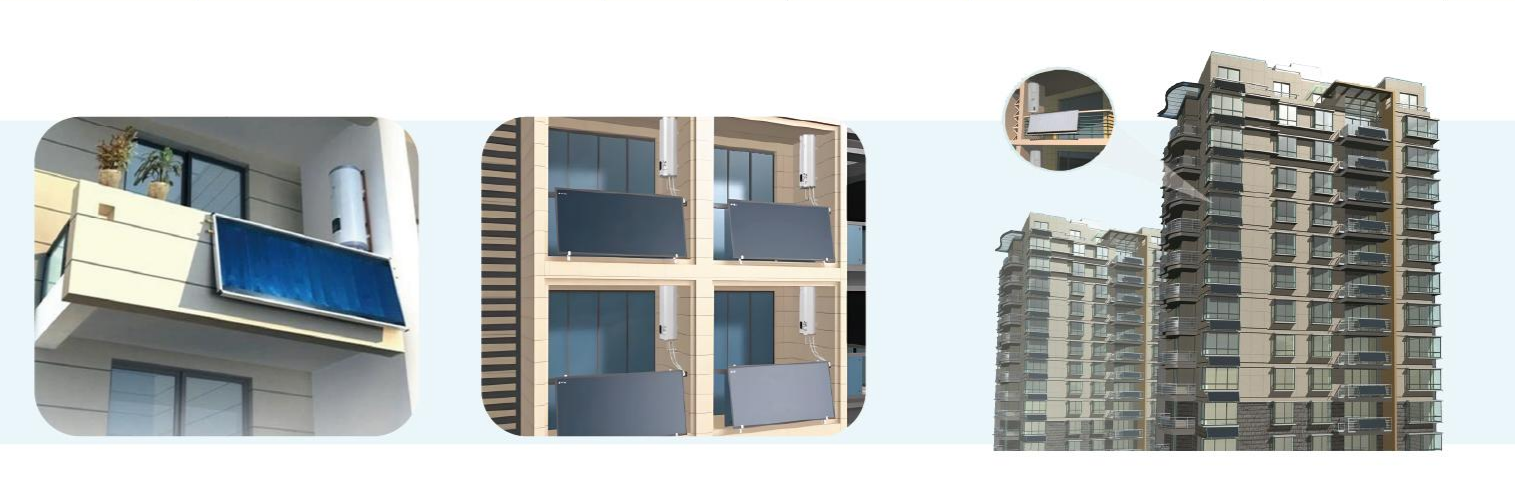

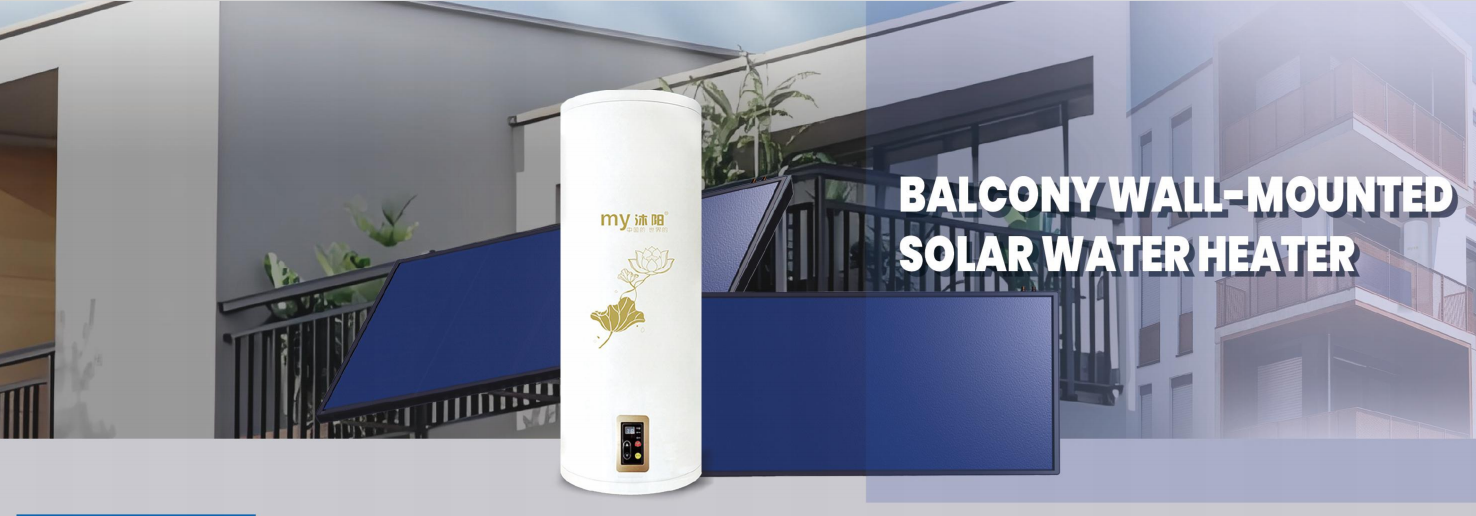

Balcony-mounted Solar Water Heater

  • 产品描述
  • 技术参数
  • Performance advantages

    Core: Copper aluminum composite/pressure bearing copper tube/German blue film/black film, whole board welding.

    Coating: Blue titanium heat absorbing coating, super blue film, absorption rate of 95-96%, reflectivity>20%/black chromium: "Titanium" element is added to the heat collecting coating, with a heat absorption rate of up to 96%, anti attenuation and anti shedding, long-lasting and efficient heat absorption, rapid heat transfer, and a heat absorption rate of over 92% after ten years.

    Cover plate: PPG tempered glass, resistant to strong resistance.

    Insulation material: high-density glass wool fiber.

    Frame: Thickened aluminum alloy sheet (color adjustable, mechanical strength>270N/m).

    Backboard: Aluminum zinc plated sheet

    Parameters table

    Model

    Type of collector

    Collector size (mm)

    Water tank size (mm)

    Collector area

    Water tank capacity (L)

    Electric-heating power

    Installation angle

    Use power supply

    MY-60L

    Tablet

    1800x800x80

    φ470mm731mm tall

    1.44㎡

    60L

    1.5KW

    60°-75°

    220V

    MY-80L

    Tablet

    2000x800x80

    φ470mm921mm tall

    1.6㎡

    80L

    1.5KW

    60°-75°

    220V

    MY-100L

    Tablet

    2400x800x80

    φ470mm1111mm tall

    1.92㎡

    100L

    1.5KW

    60°-75°

    220V

    MY-120L

    Tablet

    2500x900x80

    φ470mm1251mm tall

    2.25㎡

    120L

    1.5KW

    60°-75°

    220V

    Keywords:
    • Forced circulation type - Jinpin

With advanced flat plate solar collectors and enameled water tanks and air energy products all industry chain production line, is a large domestic vacuum tube solar energy production base.

Plant appearance
Plant appearance
Plant appearance
Plant appearance

Certifications we have received

Since the establishment of the company, Muyang people always strive for excellence in enterprises and products, and has won the honors of high-tech enterprises, Shandong famous brand, home appliances to the countryside in the bidding brand, energy-saving products to benefit the people's project in the bidding enterprise, the provincial level of the contract and trustworthy enterprises, and has successfully passed the certification of IS09001, ISO14001, IS018001, the National Compulsory 3C certification, the CQC Golden Sun certification, the National Product Leader certification, the National Healthy Living Certification, China Ten Ring Certification, China Energy Conservation Certification, China Environmental Protection Certification, all products have passed the national and provincial laboratory inspection. Product Leader Certification, National Habitat Certification, China Ten Ring Certification, China Energy Conservation Product Certification, China Environmental Protection Product Certification, etc. All products have passed the national and provincial laboratory inspection.
