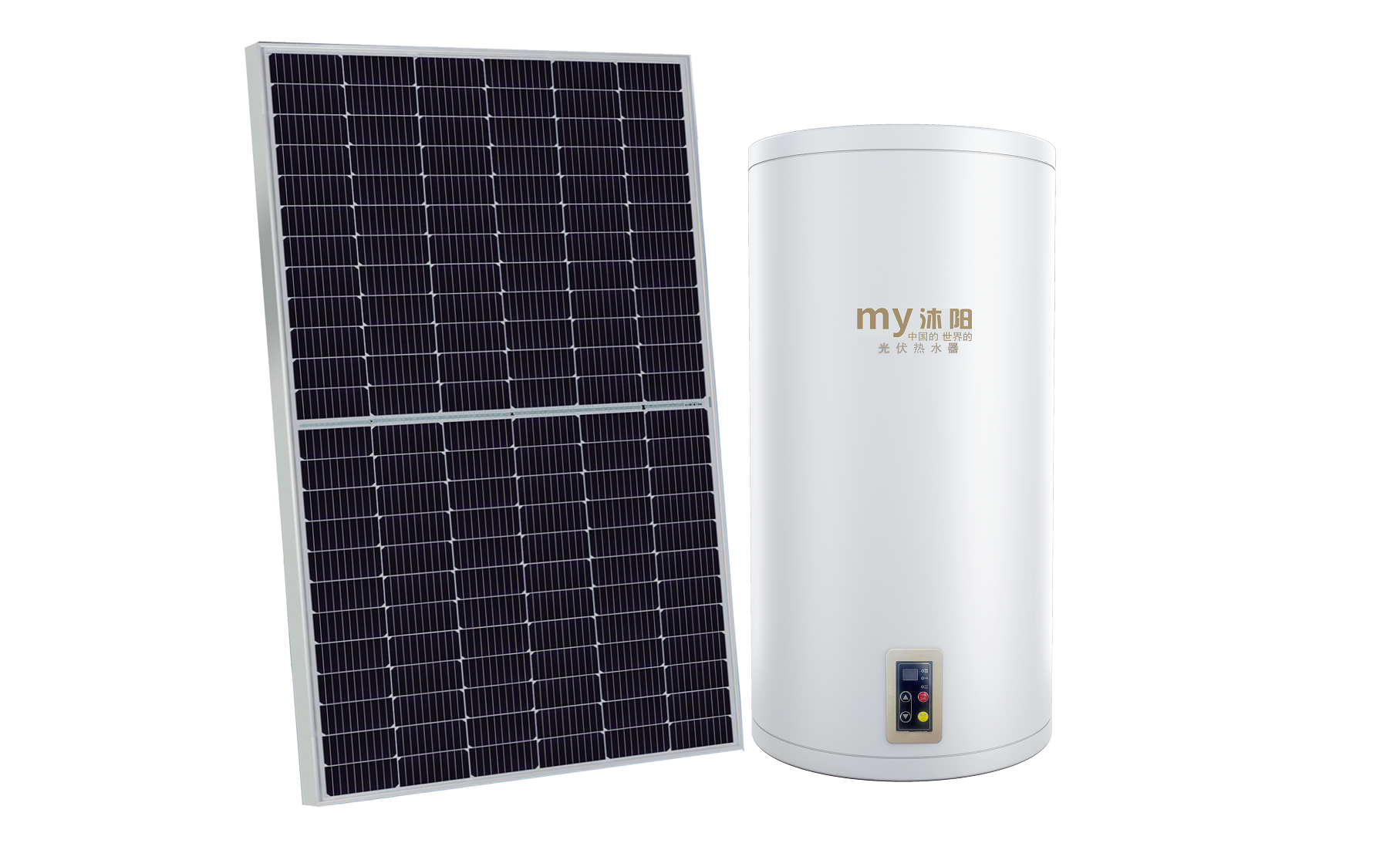

Horizontal photovoltaic water heater
Horizontal photovoltaic water heater
+
  • Horizontal photovoltaic water heater

Horizontal photovoltaic water heater


Note: the products parameters are just for reference only. Specific to the product nameplate.

Keywords:

Eva Solid Mat

Eva Jigsaw Puzzle Series

  • 产品描述
  • 技术参数
  • Features

    This product is certified by Chinese government

    1、High efficiency solar PV with ULCE\TUV certificate

    2、Photovoltaic power and conventional electric heater

    3、Enamel water tank

    4、Controller

    Specification Parameters

    MODEL
    (panels integrated system)

    Powerof solar PV

    Size of solar PV panel

    Time for heating  water to 40 ℃

    Max voltage input

    Power of AC electric heater

    Rated voltage of AV

    Temperature adjust range

    Material of inner tank

    Outline dimension
    (vertical type/horizontal type)

    GFR-60
    (vertical type/
    horizontal type)

    550W

    2278*1134*30mm*4

    4hours(with sufficient sunshine)

    172V

    2000W

    220V

    30℃—70℃

    enameled tank

    φ430*744mm
    φ468*745mm

    GFR-80
    (vertical type/
    horizontal type)

    590W

    2278*1134*30mm*4

    172V

    2000W

    220V

    30℃—70℃

    φ430*891mm
    φ468*893mm



    MODE
    (independent system)

    GFR-60
    (vertical type/horizontal type)

    GFR-80
    (vertical type/horizontal type)

    GFR-100

    GFR-120

    GFR-150

    Volume

    60L

    80L

    100L

    120L

    150L

    Power of solar PV panel

    550W

    590W

    600W

    550W*2

    600W*2

    Size of solar PV panel

    2278*1134*30mm

    2278*1134*30mm

    2278*1134*30mm

    2278*1134*30mm

    2278*1134*30mm

    Time for heating  water to 40 ℃

    4hours(with sufficient sunshine)

    Max voltage input

    49V

    Power of AC electricity heater

    2000W

    Power supply

    220V

    Temperature adjust range

    30℃——75℃

    Material of inner tank

    enameled tank

    Outline dimension

    φ430*744mm/
    φ468*745mm

    φ430*891mm/
    φ468*893mm

    φ470*1100mm

    φ470*1240mm

    φ500*1300mm

    Note: the products parameters are just for reference only. Specific to the product nameplate.

    muyang
    Keywords:
    • Horizontal photovoltaic water heater
  • muyang

    muyang

    muyang




With advanced flat plate solar collectors and enameled water tanks and air energy products all industry chain production line, is a large domestic vacuum tube solar energy production base.

Plant appearance
Plant appearance
Plant appearance
Plant appearance

Certifications we have received

Since the establishment of the company, Muyang people always strive for excellence in enterprises and products, and has won the honors of high-tech enterprises, Shandong famous brand, home appliances to the countryside in the bidding brand, energy-saving products to benefit the people's project in the bidding enterprise, the provincial level of the contract and trustworthy enterprises, and has successfully passed the certification of IS09001, ISO14001, IS018001, the National Compulsory 3C certification, the CQC Golden Sun certification, the National Product Leader certification, the National Healthy Living Certification, China Ten Ring Certification, China Energy Conservation Certification, China Environmental Protection Certification, all products have passed the national and provincial laboratory inspection. Product Leader Certification, National Habitat Certification, China Ten Ring Certification, China Energy Conservation Product Certification, China Environmental Protection Product Certification, etc. All products have passed the national and provincial laboratory inspection.
