Solar Water Heaters
Classification:
MUYANG roof top solar water heater save space on the ground, and its simple can compact design make it high efficient and reliable. MUYANG Series is a roof mounted, closed circuit solar water heater designed to provide economic service.It is suitable for frost prone or harsh water chemistry areas.
MUYANG Series Family has 120L, 150L, 200L, and 300L solar hot water system.
Hurricane Resistant Mounting Frame is available.

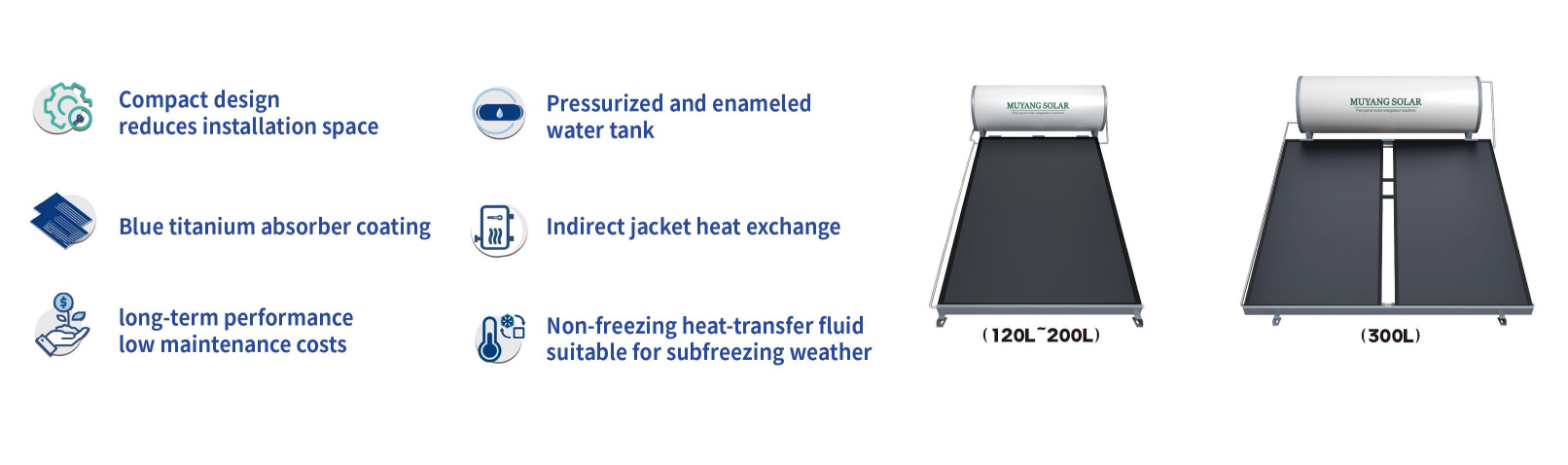

Features
1、High efficiency flat plate solar collector
2、High pressure hot water supply
3、Simple installation
4、Long life enamel water tank
5、Anti-freeze
6、Low Cost
Specification Parameters
| Capacity | 120L | 150L | 200L | 300L |
| Water Tank Dimension | ∅468mm*1310mm | ∅500mm*1280mm | ∅500mm*1640mm | ∅580mm*1820mm |
| Collector Size | 2000mm*1000mm | 2000mm*1000mm | 2000mm*1300mm | 2000mm*1300mm |
| Inlet/Outlet Size | G1/2" | G1/2" | G1/2" | G1/2" |
| PT Valve Size | G1/2" | G1/2" | G1/2" | G1/2" |
| Electric Heating Power | 2KW | 2KW | 3KW | 3KW |
Keywords:Solar Water Heaters
