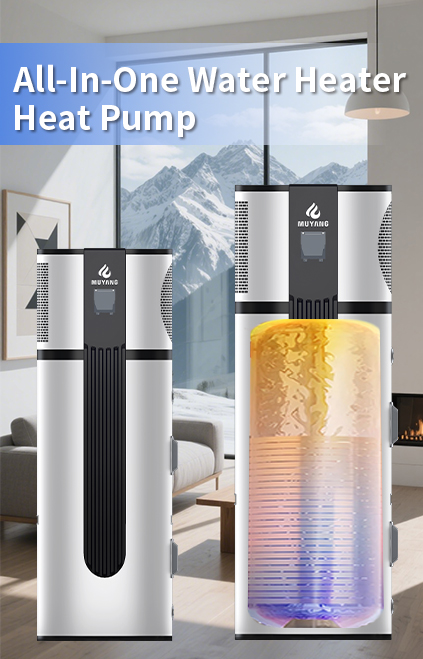

All-In-One Water Heater Heat Pump
Classification:
Capacity: 200L, 270L, 300L, 320L
Our extensive range of products can service single bedroom/bathroom residencens, right through to multi-level offices, hotels, motels, resorts, receational facilities, retail outlets. We can also tailor a solution for your specific commercial applications.
R290 is an almost perfect refrigerants: Negligible global warming potential (GWP), Zero ozone layer depletion potential (ODP), Degradation time is considered in months, Permanent green alternative in the long term, Less load for the same performance, Low energy consumption and higher efficiency.
Features
·Energy-saving and environmentally friendly,long-lasting constant temperature building supporting special Horizontal/vertical design for easy installation and space-saving efficient heating smooth and quiet safe bathing.
·Special brand compressor for heat pump, higher heating efficiency, surging hot water without waiting Adoptinginternational advanced enameling technology.
·Strong pressure capacity (more than 280,000 times of high-intensit pulse pressure test).
Specification Parameters
| SPECIFICATIONS | ALL-IN-ONE HOT WATER HEAT PUMP | |||||||
| EE Model (Residential) | MY-HWS-A1-200E | MY-HWS-A1-270E | MY-HWS-A1-300E | MY-HWS-A1-320E | MY-HWS-A2-270E | MY-HWS-A2-300E | MY-HWS-A2-320E | |
| Power supply | 220-240V/50Hz/1Ph | 220V~240V/50HZ/60HZ/1Phase | ||||||
| Water Tank Volume | 200L | 270L | 300L | 320L | 270L | 300L | 320L | |
| Electric Heating Element | 2KW | |||||||
| Heating Capacity | Standard mode (Heat pump only) | 2.7kW | 2.7kW | 2.7kW | 2.7kW | 2.7kW | 2.7kW | 2.7kW |
| Rated Input Power | 0.56kW | 0.58kW | 0.56kW | 0.53kW | 0.58kW | 0.56kW | 0.53kW | |
| COP | 4.9 | 4.8 | 5 | 5.2 | 4.8 | 5 | 5.2 | |
| Recharge Rate Per Hour | 58L/h | 58L/h | 58L/h | 58L/h | 58L/h | 58L/h | 58L/h | |
| Sound Level | 49 dB (A) | 49 dB (A) | 49 dB (A) | 49 dB (A) | 49 dB (A) | 49 dB (A) | 49 dB (A) | |
| Heating Capacity | *Silent mode (Heat pump only) | N/A | N/A | N/A | N/A | 1.8kW | 1.8kW | 1.8kW |
| Rated Input Power | N/A | N/A | N/A | N/A | 0.44kW | 0.42kW | 0.41kW | |
| COP | N/A | N/A | N/A | N/A | 4.6 | 4.5 | 4.4 | |
| Recharge Rate Per Hour | N/A | N/A | N/A | N/A | 43L/h | 43L/h | 43L/h | |
| Sound Level | N/A | N/A | N/A | N/A | 45 dB (A) | 45 dB (A) | 45 dB (A) | |
| Heating Capacity | *Booster mode (Heat pump + Electric heater) | 5.2kW | 5.2kW | 4.8kW | 4.4kW | 5.2kW | 4.8kW | 4.4kW |
| Rated Input Power | 2.4kW | 2.4kW | 2.4kW | 2.4kW | 2.4kW | 2.4kW | 2.4kW | |
| COP | 4.5 | 4.5 | 4.5 | 4.4 | 4.5 | 4.5 | 4.4 | |
| Recharge Rate Per Hour | 112L/h | 112L/h | 112L/h | 112L/h | 112L/h | 112L/h | 112L/h | |
| Heating Capacity | *E-Heater mode (Electric heater only) | 2KW | 2KW | 2KW | 2KW | 2KW | 2KW | 2KW |
| Rated Input Power | 2KW | 2KW | 2KW | 2KW | 2KW | 2KW | 2KW | |
| COP | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
| Recharge Rate Per Hour | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
| Max Current (under booster mode) | 10A | 14A | ||||||
| Refrigerant | R290(400g) | R290(450g) | ||||||
| Rated Outlet Water Temperature | 60°C | |||||||
| Max Outlet Water Temperature | 70°C | |||||||
| Working range with element | —15°C —43°C | |||||||
| IP Class | IPX4 | |||||||
| Electric Shock Proof | Ⅰ | |||||||
| Unpacked Dimension | 580*580*1730mm | 640*640*1875mm | 640*640*2005mm | 640*640*2095mm | 600*600*1875mm | 600*600*2005mm | 600*600*2095mm | |
| Net Weight (outdoor unit) | 118kg | 146kg | 156kg | 162kg | 132kg | 146kg | 152kg | |
Keywords:All-In-One Water Heater Heat Pump
