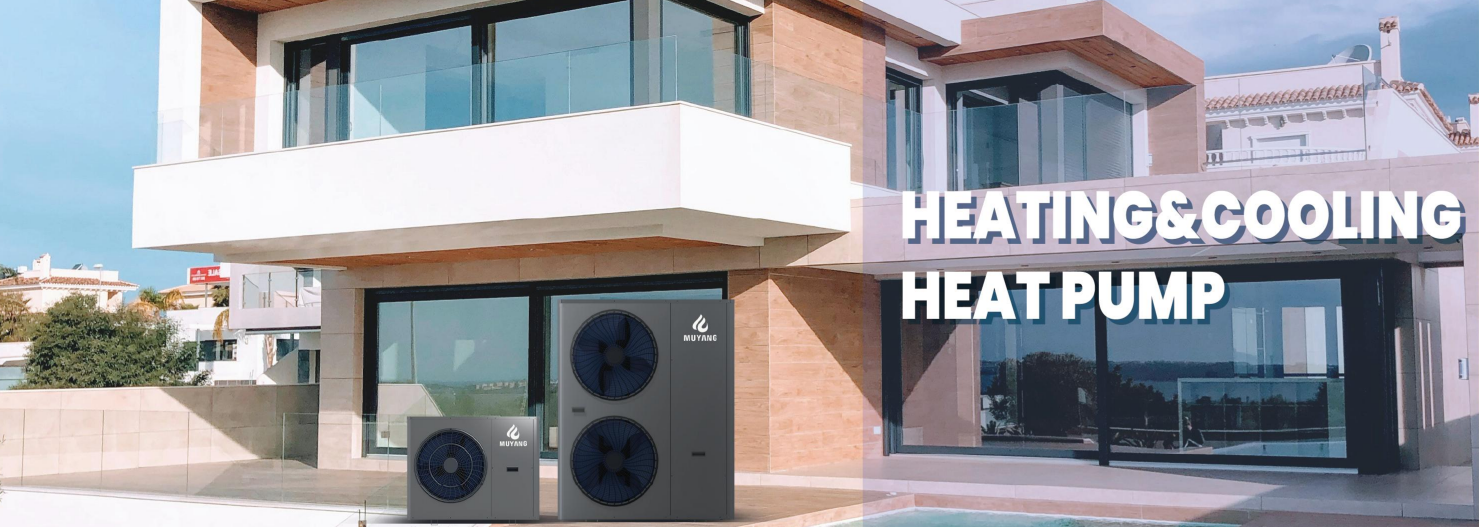

Full Dcinverter Air Heating And Cooling Unit
Classification:
Features

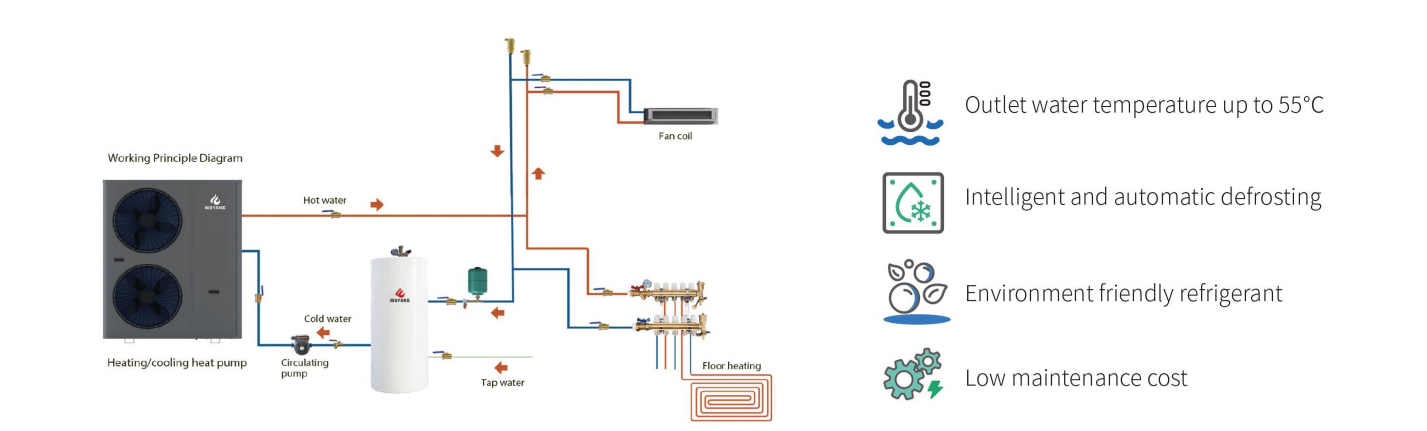

·In winter, hot water not exceeding 60'C circulates constantly in the pipeline as a heat medium for floor radiant heating (floor heating), providing a mild and non-drying warmth that is healthier and aligns with the traditional Chinese medicine perspective of warming the feet while keeping the head cool.
·The central air conditioning water system is primarily utilized for summer purposes.In addition to fulfilling winter heating and summer ventilation and refrigeration functions, it also allows for temperature control in different rooms during winter and enables setting individual room-specific schedules for household central air conditioning during summer.
Specification Parameters
| Product Model | 3P | 5P | 6P | 5P | 6P | 8P | ||
| Efficiency Class | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Inverter/Fixed Frequency | Full DC inverter | |||||||
| Full DC inverter air heating and cooling unit system parameter | Power Supply | 220V~/50Hz | 380V~3N/50Hz | |||||
| Refrigerant Type | R32*2200g | R32*3300g | R32*3300g | R32*3450g | R32*3450g | R32*4500g | ||
| Max.Heating Water Temp(℃) | 55℃ | |||||||
| Dry-bulb temp 7℃ Outlet Water Temp 45℃ (Rated heating condition) | Heating Capacity (kW) | 8.9 | 16.29 | 17.91 | 16.29 | 17.91 | 22.65 | |
| Rated power(KW) | 2.54 | 4.62 | 5.08 | 4.62 | 5.08 | 6.43 | ||
| COP(W/W) | 3.5 | 3.52 | 3.52 | 3.52 | 3.52 | 3.52 | ||
| Dry-bulb temp -12℃ Outlet Water Temp 41℃ (heating condition) | Heating Capacity (KW) | 6.6 | 11.56 | 12.71 | 11.56 | 12.71 | 15.71 | |
| rated power(KW) | 2.64 | 4.62 | 5.08 | 4.62 | 5.08 | 6.25 | ||
| COP(W/W) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.51 | ||
| Dry-bulb temp -20℃ Outlet Water Temp 41℃ (Cooling heating condition) | Heating Capacity(KW) | 5.71 | 9.96 | 10.45 | 9.96 | 10.45 | 12.89 | |
| Rated power(KW) | 2.61 | 4.56 | 4.79 | 4.56 | 4.79 | 5.91 | ||
| COP(W/W) | 2.19 | 2.18 | 2.18 | 2.18 | 2.18 | 2.18 | ||
| Dry-bulb temp 35℃ Outlet Water Temp 7℃ (Cooling heating condition) | Cooling Capacity(KW) | 6.38 | 11.5 | 12.07 | 11.5 | 12.07 | 14.67 | |
| Rated power(KW) | 2.29 | 4.06 | 4.26 | 4.06 | 4.26 | 5.19 | ||
| EER(W/W) | 2.79 | 2.83 | 2.83 | 2.83 | 2.83 | 2.83 | ||
| Max.Rated Input Power(KW) | 4.4 | 5.2 | 5.2 | 5.2 | 5.2 | 7.2 | ||
| Max.Rated Input Current(A) | 14 | 26 | 28 | 26 | 28 | 32 | ||
| Rated flow m3/h | 1.5 | 2.5 | 2.5 | 2.5 | 2.5 | 4 | ||
| Noise Lenel dB(A) | ≤64dB（A） | ≤60dB（A） | ≤65dB（A） | ≤60dB（A） | ≤65dB（A） | ≤65dB（A） | ||
| Water Way | Condenser Way | plate type heat exchanger | ||||||
| Water side pressure loss(kPa) | 27 | 27 | 27 | 27 | 27 | 30 | ||
| Pipe Location | Right | Right | Right | Right | Right | Right | ||
| Pipe Connection | DN25 | DN25 | DN25 | DN25 | DN25 | DN32 | ||
| Net Dimension | （mm) | 1100*389*870 | 1150*390*1395 | 1150*390*1395 | 1150*390*1395 | 1150*390*1395 | 1250*430*1572 | |
| Net Weight | （kg） | 77 | 115 | 115 | 115 | 115 | 155 | |
