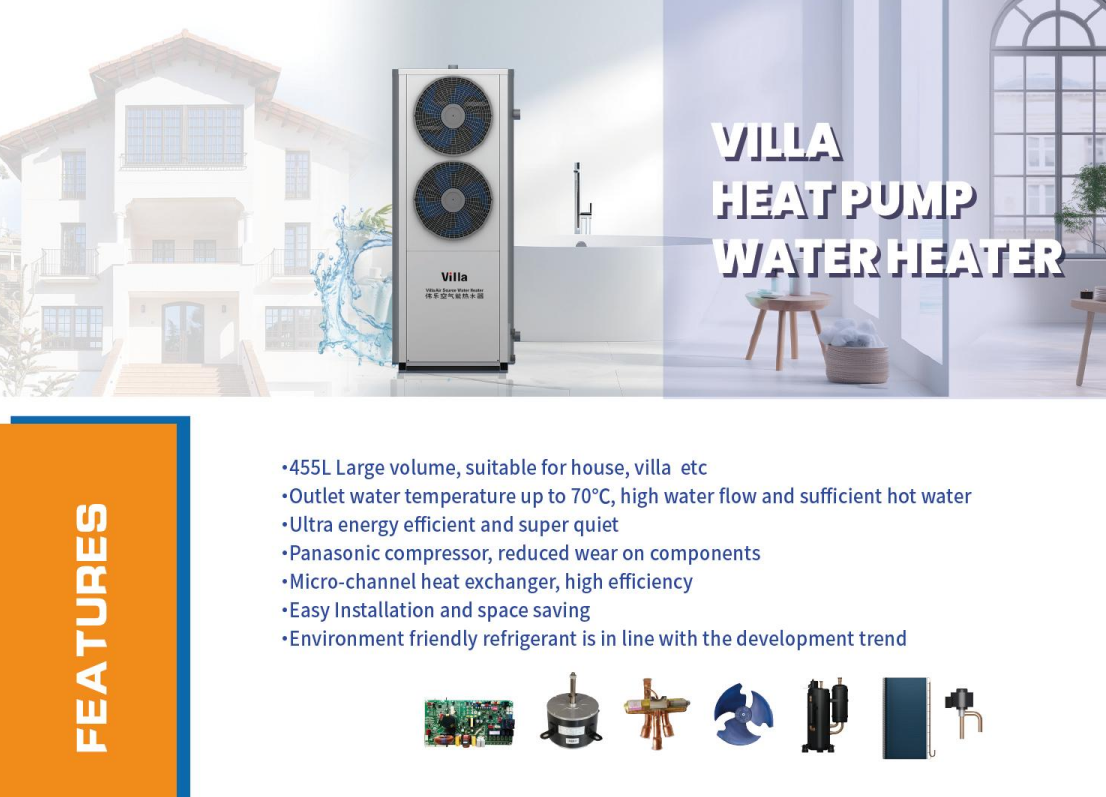

Villa Air Source Water Heater
Classification:
Suitable for conventional villas and super large villas, the core principle is to break down the whole into smaller parts, divide into units, and simplify complexity.
Customized whole house hot water, pursuit of ultimate energy efficiency, bathing in home hot springs- 25 ° C ultra-low temperature air source water heater.
Parameters Table
Product model/power supply | KD170/500-L/220V~50Hz |
Anti electric shock level/protection level | Class I/PX4 |
Nominal heating capacity | 7800W |
Rated power consumption | 1800W |
Rated working current | 8.35A |
Electric-heating power | 6000W |
Maximum working pressure of heat exchanger | 3.0MPa/0.8MPa |
Maximum allowable working pressure on the exhaust/suction side | 3.0MPa/0.8MPa |
Water side rated capacity/water side rated pressure | 500L/0.8MPa |
Rated maximum outlet temperature | 70°C |
Water yield | 168L/h |
Noise | ≤54dB(A) |
Refrigerant Charge | R134a/1500g |
Dimensions (HxWxD) | 700*1070*1720mm |
Keywords:Villa Air Source Water Heater
