Villa Solar Water Heater System
Keywords:
Eva Solid Mat
Eva Jigsaw Puzzle Series
- 产品描述
-
Features

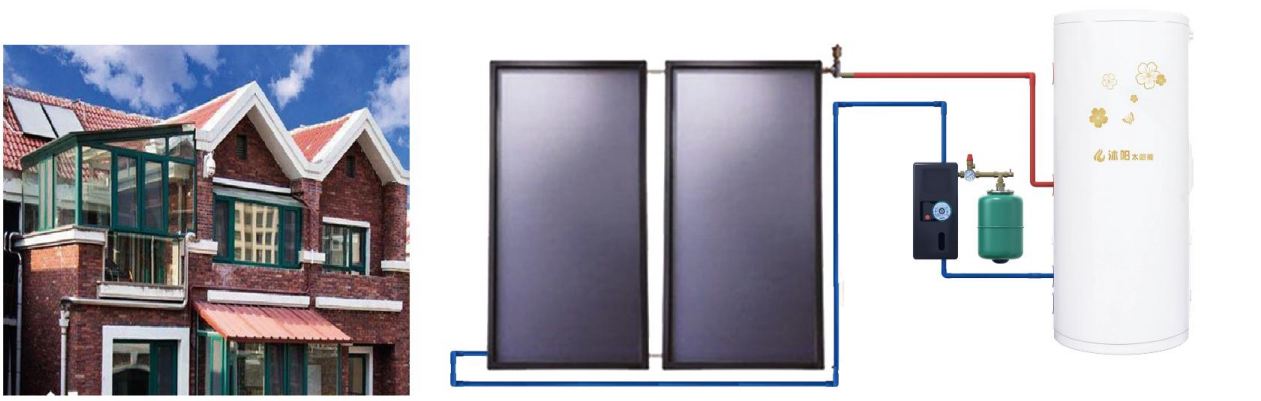

Application: House or low-rise dwelling

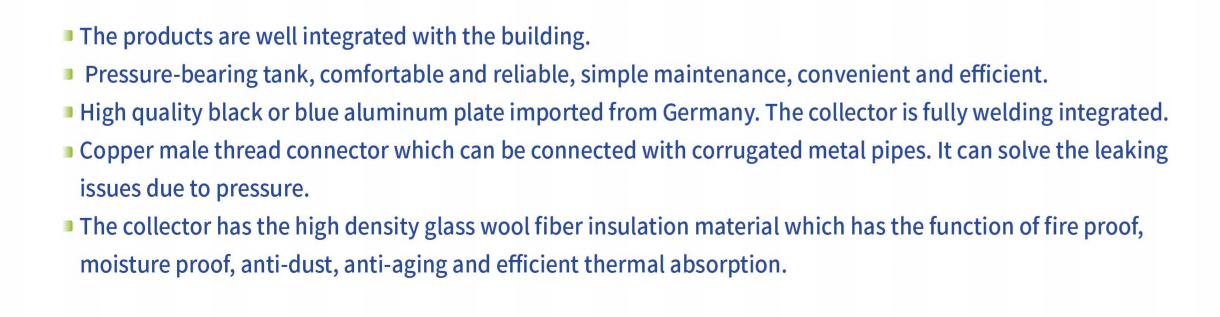

The products are well integrated with the building.
Pressure-bearing tank, comfortable and reliable, simple maintenance, convenient and efficient.
High quality black or blue aluminum plate imported from Germany. The collector is fully welding integrated.
Copper male thread connector which can be connected with corrugated metal pipes. it can solve the leaking issues due to pressure.
The collector has the high density glass wool fiber insulation material which has the function of fire proofmoisture proof, anti-dust, anti-aging and efficient thermal absorption.
Specification Parameters
Model Collector type Collector size(mm) Tank size(mm) Collector area Tank volume(L) Electric heater power Tilt angle Power supply MY-150L flat panel 2000*800*80*2 φ480mm*1385mm 3.2m² 150L 3KW According to the roof pitch 220V MY-200L flat panel 2000*1000*80*2 φ580mm*1290mm 4.0m² 200L 3KW 220V MY-300L flat panel 2000*1000*80*3 φ650mm*1540mm 6.0m² 300L 3KW 220V
With advanced flat plate solar collectors and enameled water tanks and air energy products all industry chain production line, is a large domestic vacuum tube solar energy production base.
Certifications we have received
Since the establishment of the company, Muyang people always strive for excellence in enterprises and products, and has won the honors of high-tech enterprises, Shandong famous brand, home appliances to the countryside in the bidding brand, energy-saving products to benefit the people's project in the bidding enterprise, the provincial level of the contract and trustworthy enterprises, and has successfully passed the certification of IS09001, ISO14001, IS018001, the National Compulsory 3C certification, the CQC Golden Sun certification, the National Product Leader certification, the National Healthy Living Certification, China Ten Ring Certification, China Energy Conservation Certification, China Environmental Protection Certification, all products have passed the national and provincial laboratory inspection. Product Leader Certification, National Habitat Certification, China Ten Ring Certification, China Energy Conservation Product Certification, China Environmental Protection Product Certification, etc. All products have passed the national and provincial laboratory inspection.
